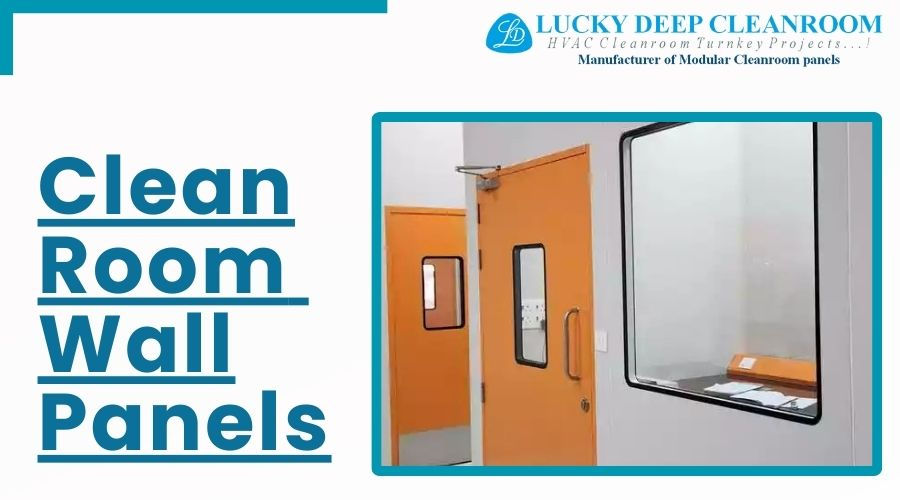

Clean Room Wall Panels play a crucial role in maintaining contamination-free environments across pharmaceutical, biotechnology, healthcare, electronic, and food industries. As a leading manufacturer of Clean Room Wall Panels, we ensure precision engineering, durability, and compliance with stringent cleanroom standards.

Below is a pointwise, well-structured blog using your provided technical details:

Key Features of Cleanroom Wall Panels

1. High-Quality Surface Skins

Constructed with PCGI / PCGI (GPSP), PPGI / PPGI, or SS / SS combinations.
Multiple skin options allow customization based on application, durability needs, and cleanliness levels.

2. Robust Structural Framework

Built with a strong GI (Galvanized Iron) framework to ensure stability and long-term performance.

3. Precision Sheet Thickness Options

Available sheet thicknesses: 0.5 mm, 0.6 mm, and 0.8 mm.
Engineered to deliver structural strength while maintaining lightweight properties.

4. Advanced Surface Coatings

Powder Coating Thickness: 60–80 microns.
Pre-Coating Thickness: 30–35 microns.
Ensures enhanced corrosion resistance and a long-lasting clean aesthetic.

5. High-Performance Insulation Options

Choose from multiple insulation cores based on thermal, acoustic, and fire rating needs:

PUF – 40±2 kg/m³
PIR – 48±2 kg/m³
Rockwool – 96 kg/m³ & 144 kg/m³ for superior fire resistance

6. Hygienic and Leak-Proof Sealant

Sealed with food-grade silicone on both sides to maintain hygiene.
Gap control: Not more than 4 mm, ensuring airtight installation and contamination prevention.

7. Customizable Dimensions

Width: Standard 1200 mm or tailored as per room layout.
Height: Fully customizable according to cleanroom requirements.
Panel Thickness: 35 mm, 50 mm, 80 mm, 100 mm options available.

8. Durable Support System

Supported with powder-coated base runners and self-supported interconnecting profiles for seamless installation.

9. Aesthetic & Functional Color Options

Standard color: RAL 9002.
Additional colors available from the entire RAL chart for brand or project-specific aesthetics.

10. Panel Types

Progressive Panels: Ideal for large cleanrooms needing sequential installation.
Non-Progressive Panels: Allow individual panel removal without disturbing adjacent panels—perfect for maintenance-friendly designs.
